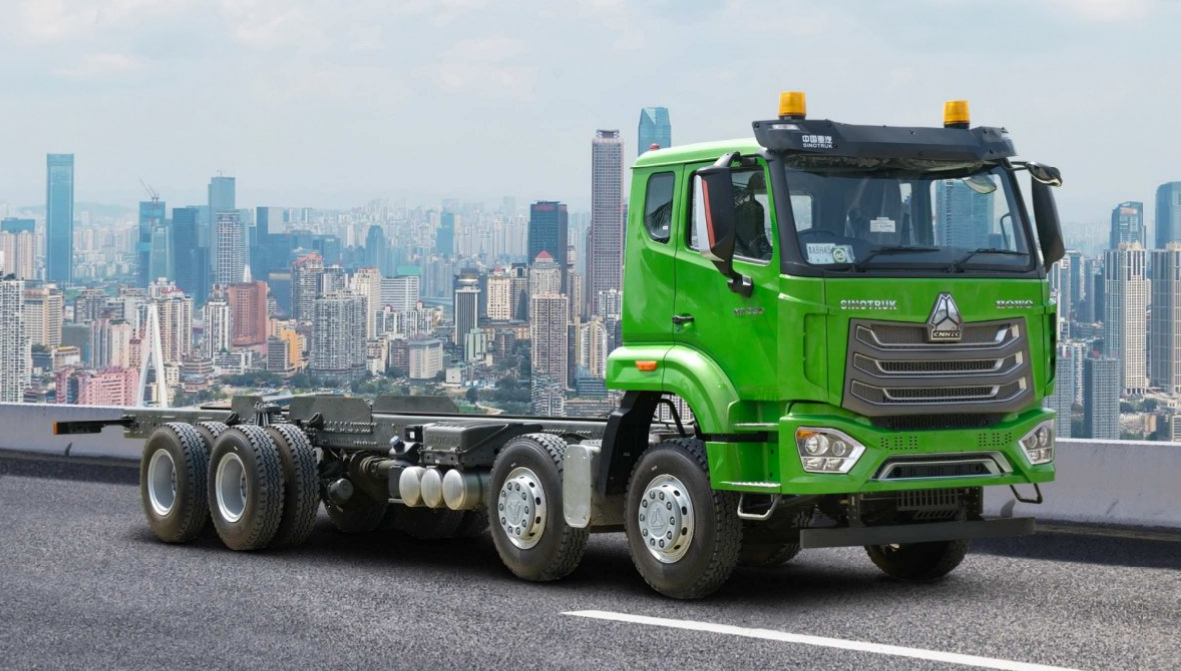

SINOTRUK HOWO NX 8X4 Cargo Chassis (RHD)

Type

HOWO NX 8X4 Cargo Chassis (RHD)

Model

ZZ1315N4666E1（Euro5）

Weight

Curb Weight

11,690 kg

Gross Vehicle Weight

≤40,000 kg

Dimensions

Overall Dimensions
(LxWxH)(M)

12*2.5*3.15

Wheelbase (mm)

1800+4600+1350

Front Overhang(mm)

1550

Rear Overhang (mm)

2625

Drive type

6X4

Cab

HOWO-NX Cab

Single Refrigeration A/C
Manual Cab Tilting
Automatic Lifting Window
Four-point Hydraulic Suspension Cab
Two-Level Stepping Board
Hydraulic Suspension Driver Seat

Engine

Model

MC07H.35-50

Displacement

7.36L

Power

350HP

Type

six cylinders in line, water-cooling, four-stroke, turbo charger with inter-cooler, direct injection

Emission standard

Euro V

Transmission

HW13709XSTC2, synchromesh, 9 Forwards & 1 Reverse Shifts, hydraulic retarder

Chassis frame

double-layer frame (8+8/300)

Front axle

VGD71（drum-type） 7T*2

Rear axle

MCJ13JGY double axles (i=5.29)  13T*2

Suspension

front and rear strengthened leaf spring (10/12)

Fuel Tank

400L

Tyre

11.00R20

Performance

Max Speed (km/h)

102km/h

Max Gradeability (%)

20%

Protections

Type

Metal Bumper
